Toxic Gas Removal Unit

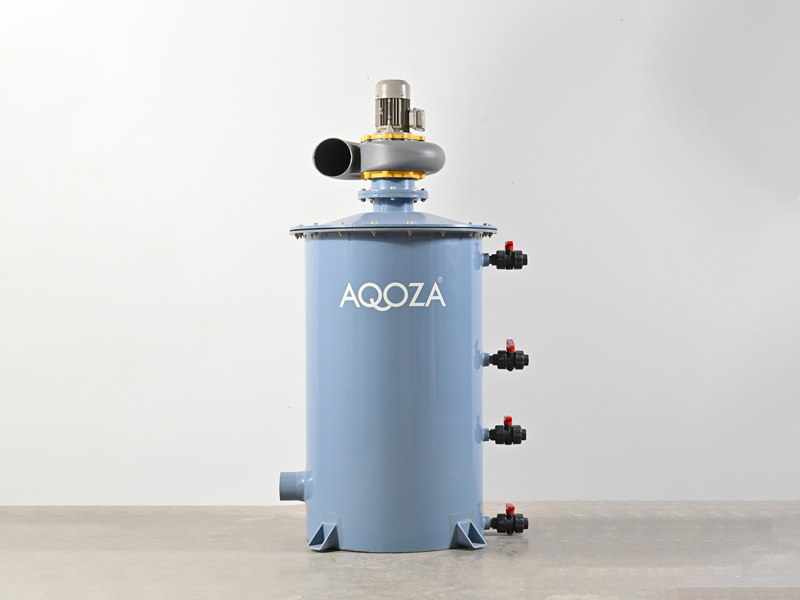

Dry Scrubber Units

AQOZA DSU is a series of standard dry scrubber units designed to remove toxic gases from point of source or from an enclosed room / process tank. Standard units’ capacities are ranging from 200 m3/hr to 1,000 m3/hr air flow. Custom engineered units are also offered based on client requirement.

Filtration media are being selected based on the gases to be removed. Gas removal efficiency test of the filtration media sample are offered at our gas testing facility for particular applications as designed. AQOZA DSU units can offer a gas removal efficiency up to 99.99%. Media replacement can be identified by portable gas sensors, fixed gas sensors or colour changing pads at the outlet vent of the unit.

Filtration vessels are constructed based on the gases to be treated. For corrosive gas application, non-metallic polypropylene or FRP materials are being chosen. Compatibility of gases being adsorbed are verified against the material of construction in terms of chemical reaction and life of the composite the material. Flame proof material also being offered upon request. Filtration vessels are being manufactured in-house facility of AQOZA to ensure the quality of product and selection of raw material.

Extraction fans offered are quite in operation, made of non-corrosive Polypropylene material. Flame proof motors are being offered upon request.

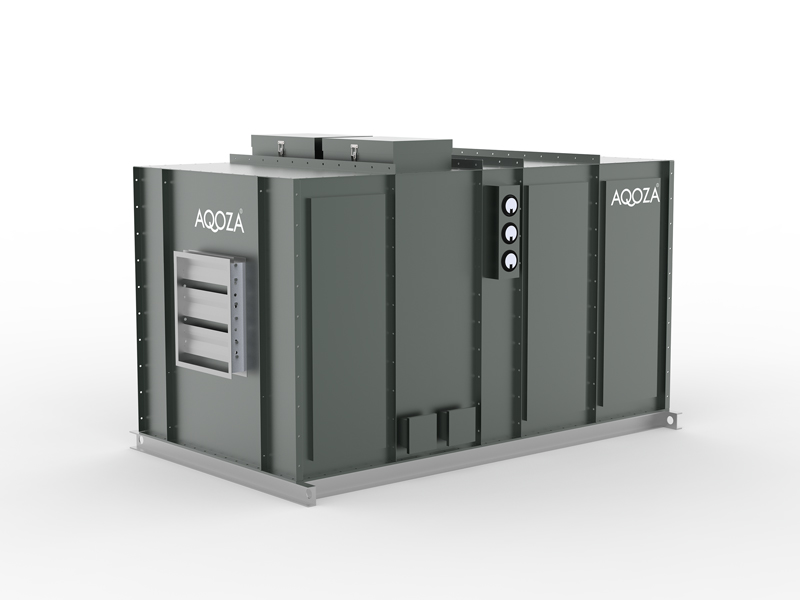

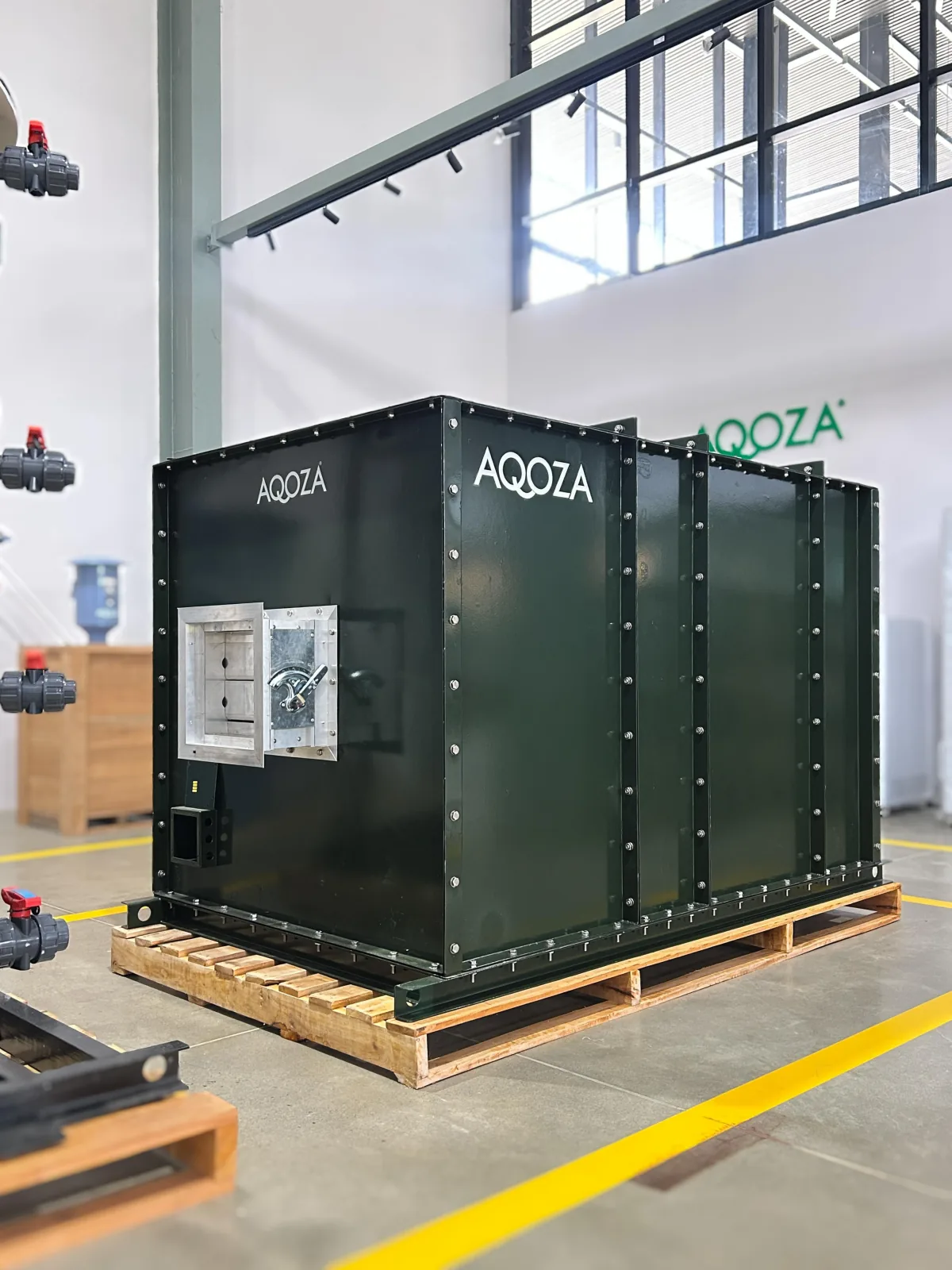

Deep Dry Scrubber Unit

AQOZA DDSU is a custom engineered dry scrubber unit to filter the HVAC intake air to the facilities. Air flow of the unit shall be designed to match the HVAC intake air and to remove gas pollutants in the environments. Unit can be designed to remove a series of gases and also to be specific to single gas removal. This unit is ideal to ensure Air quality is within the ISA standard for equipment in critical control rooms. And also it gives better environment for employees in the critical control rooms to work long hours when there is polluted gas leaks in the surroundings.

Filtration media are being selected based on the gases to be removed. Media are bulk filled for large volume of air flow. Gas removal efficiency test of the filtration media sample are offered at our gas testing facility for particular applications as designed. AQOZA DDSU units can offer a gas removal efficiency up to 99.99%. Media replacement can be identified by portable gas sensors, fixed gas sensors or colour changing pads at the outlet vent of the unit. Media remaining life analysis test are also being offered to client to periodically check the life of the filtration media.

Filtration vessels are constructed based on the gases to be treated. For corrosive gas application, non-metallic polypropylene or FRP materials are being chosen. Stainless steel or Aluminium casings also offered based on the client preference.

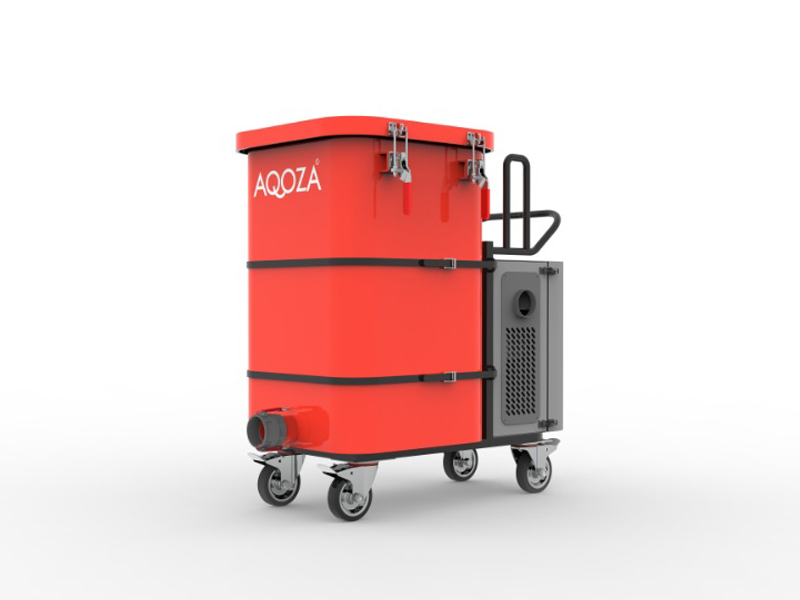

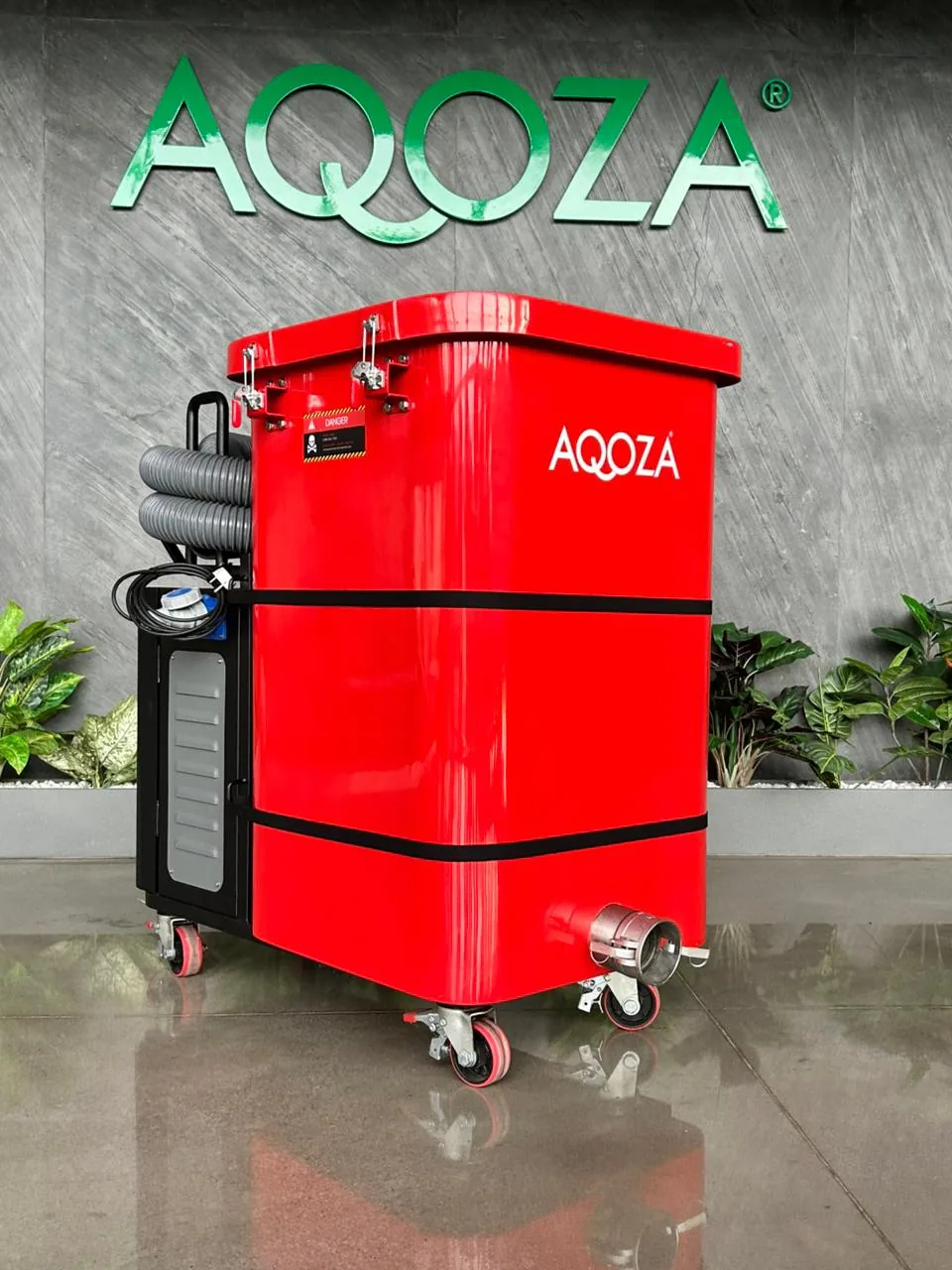

Portable Toxic Gas Removal Station – AQOZA PTRS

The AQOZA PTRS is a specially designed and engineered portable toxic gas removing station that is perfect for shutdown and maintenance applications. Many industries release toxic gases during these processes, and releasing these gases into the atmosphere can be highly dangerous for both people and the environment. It's crucial to safely remove these gases to ensure that the concentrations are within safe limits for individuals to work safely.

Features of the AQOZA PTRS include a portable design, with the unit engineered for removing toxic gas releases for maintenance and shutdown applications. The activated carbon bed is housed in a filter, and the adsorption media is specially manufactured to effectively remove specific gases related to each application. The filtration unit is designed for quick replacement model, for easy handling, replacement and transportation.

Media replacement is made easy with our carbon drum replacement service. We take care of the disposal or re-use of spent media, eliminating the need for clients to handle contaminated spent carbon at their facility. Replacement of the drum can be done by client-trained personnel within a short amount of time.

The AQOZA PTRS is ideal for a variety of applications, including manhole cleaning, lifting station maintenance, process take maintenance, gas leakage and refill, gas filling stations, equipment failure, confined space gas removal, and chemical storage rooms.

At Aqoza, we prioritize the safety of individuals and the environment. Contact us today to learn more about our innovative solutions for toxic gas removal.
